Twisted Cable

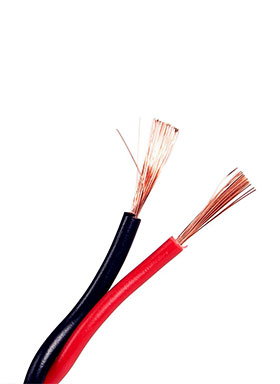

Item: RVS CABLE
Standard: BS6004/ IEC60227
Voltage: 300/500, 450/750 V
Material：PVC
Conductor: Cu/ TC/ CCA/ TCCA
Section: 2*0.5 mm2—2*16 mm2
Application: Used for the wiring of switch control, relay and instrument panels of power switeh-gear
| Item Spec | Nominal corss section mm2 | NO./Diameter of conductor mm | Insulation thickness mm | Signal Max.outer Diameter mm | Ref.weight kg/km | Conductor resistance at 20°C≤(Ω/km） |
| Twisted wire | 2x0.5 | 2x16/0.2 | 0.6 | 2.6 | 16 | 39 |
| Twisted wire | 2x0.75 | 2x24/0.2 | 0.6 | 2.8 | 22 | 26 |
| Twisted wire | 2x1 | 2x32/0.2 | 0.6 | 3 | 26 | 19.5 |
| Twisted wire | 2x1.5 | 2x30/0.25 | 0.7 | 3.5 | 38 | 13.3 |
| Twisted wire | 2x2.5 | 2x50/0.25 | 0.8 | 4.2 | 60 | 7.98 |
| Twisted wire | 2x4 | 2x56/0.3 | 0.8 | 4.8 | 92 | 4.95 |
| Twisted wire | 2x6 | 2x84/0.3 | 0.8 | 6.3 | 134 | 3.3 |
| Twisted wire | 2x10 | 2x80/0.4 | 1 | 7.6 | 242 | 1.91 |
| Twisted wire | 2x16 | 2x128/0.4 | 1 | 8.8 | 346 | 1.21 |
